How to use a torque spanner when loosening? Upside down? On reverse pitch?

- Categories : Tutorial

This tutorial explains how to use a torque spanner "upside down", i.e. counterclockwise, when loosening. This is particularly useful when tightening on a reverse thread.

Required tools:

  • Torque spanner
  • Torx spanners or Phillips screwdriver

Duration of the operation: 2 minutes

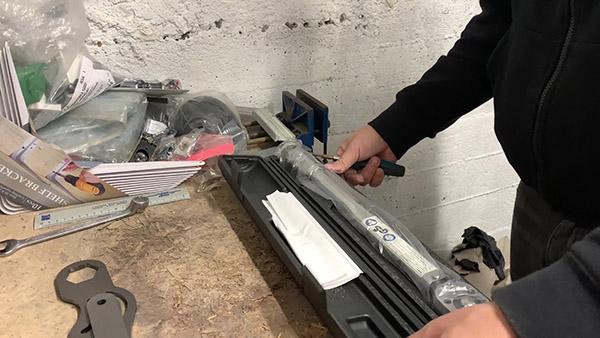

Presentation of the torque spanner

The operation consists of turning the tip of the torque spanner so that it can torque a screw or nut with an inverted pitch, counterclockwise. This type of reverse thread is found on shafts/nuts on maxiscooters (Piaggio, Aprilia, Gilera, BMW etc...).

Presentation of the torque spanner

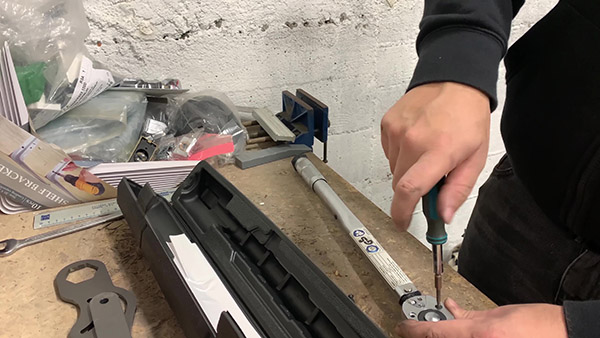

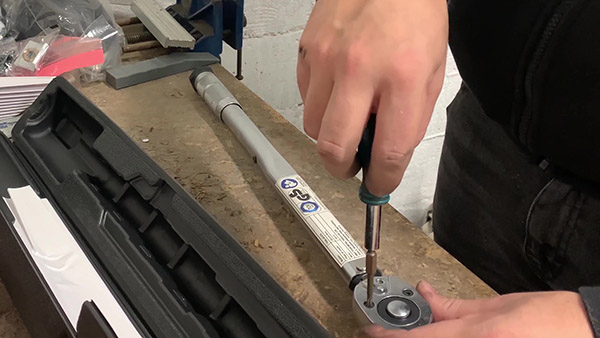

Remove the torque spanner plate (1st screw)

Using a Torx or Phillips screwdriver (depending on the model), unscrew the first screw holding the plate at the head of the torque spanner.

Remove the torque spanner plate (1st screw)

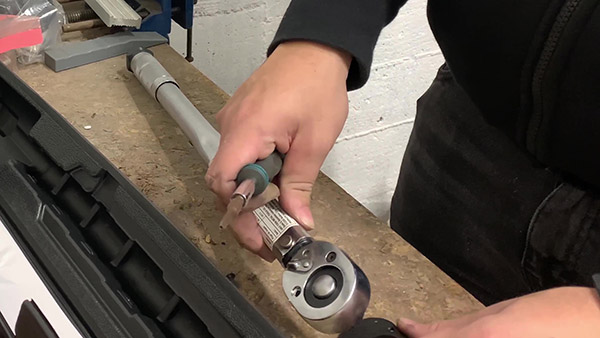

Remove the torque spanner plate (2nd screw)

Then, the second screw is unscrewed to hold the plate in place.

Remove the torque spanner plate (2nd screw)

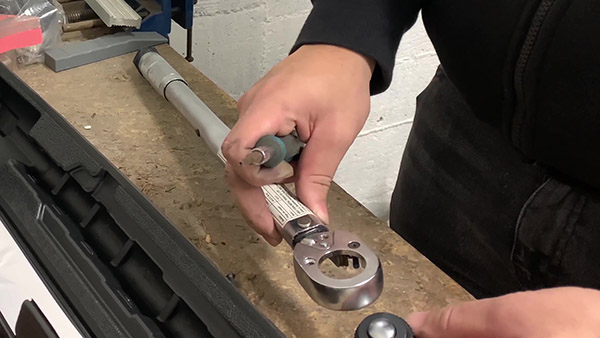

Pull out the end of the torque spanner

Once the 2 screws have been unscrewed, the torque spanner mechanism is removed.

Pull out the end of the torque spanner

Turn the tip over

The mouthpiece is then turned over and put back in its housing.

Turn the tip over

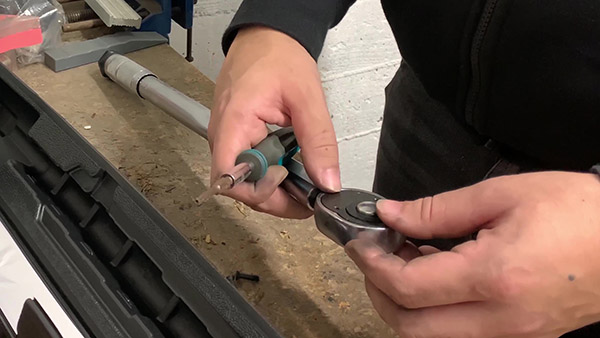

Turning the tip over (continued)

The nozzle is now in place in its housing.

Turning the tip over (continued)

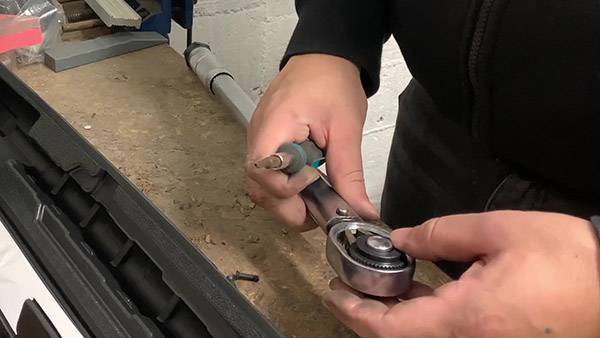

Put the plate back in place

The plate can then be repositioned in its original position.

Put the plate back in place

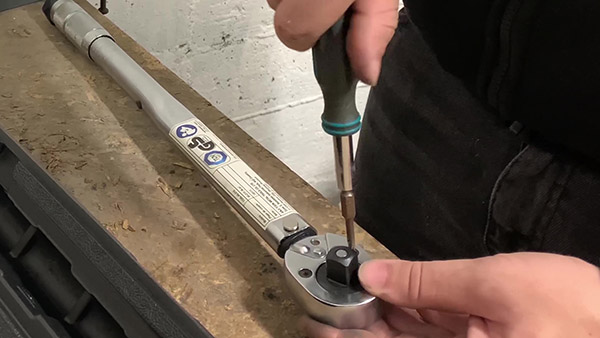

Screw in the 2 screws to hold the plate in place

Using a Torx or Phillips screwdriver, depending on the model, the 2 screws holding the plate at the head of the torque spanner are tightened.

Screw in the 2 screws to hold the plate in place

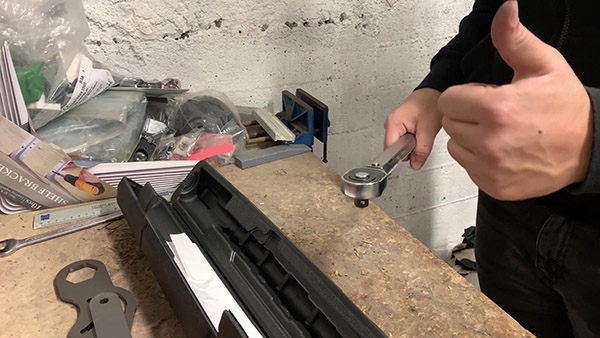

The torque spanner is ready!

The torque spanner is now ready to tighten in one reverse step, counterclockwise.

The torque spanner is ready!

Watch the video tutorial below:
